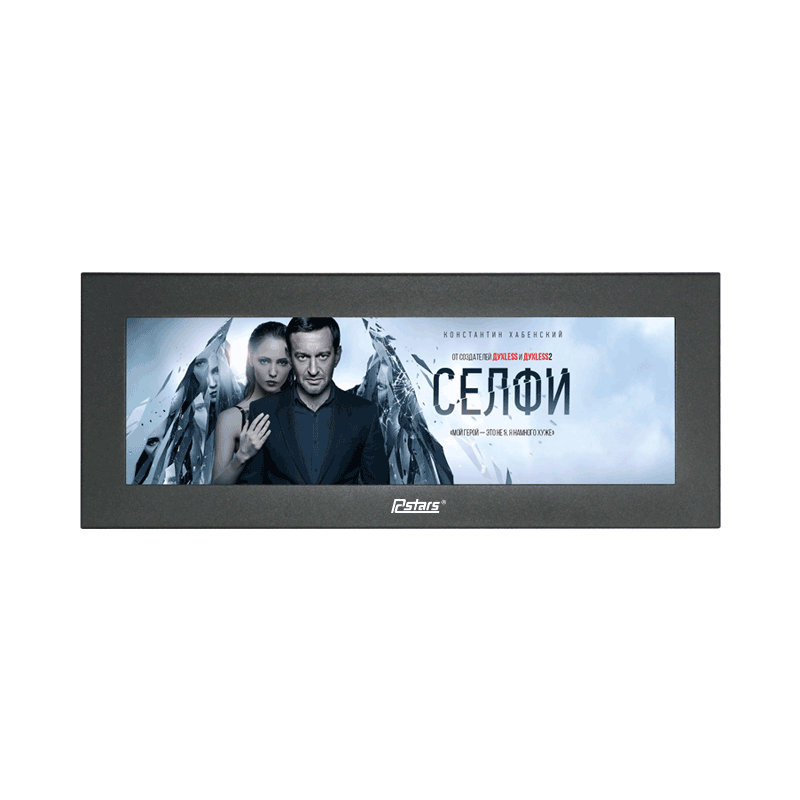

14.9"ultra wide LCD monitor

RCS-150K

Product features

AndroidAndroid

Plug & PlayPlug & Play

LCD MonitorLCD Monitor

Machanical

Metal case,Close Frame Design

High Brightness

Normal/500nits/700nits/1000nits/1500nits optional

Color

Black

Optional size

14.9”/19”/19.1”/24”/28”/28.8”/38”/41.5”/57”

Application

Indoor/Public Information Display

Installation

Wall-mounting Bracket Optional

Power

DC12V

Touch

No touch

Android Network Display

Android Network Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

14.9inch TFT LCD

Max Resolution

1280x390

Aspect Ratio

>3:1

Pixel Pitch

0.282x0.282

Viewing Angle

70/70/50/70

Contrast Ratio

500:1

Brightness

400cd/m²

Response Time

30ms

Display Area (mm)

360.94×109.98

Panel Size(mm)

407.5×136 ×20.5

Screen Weight

890g

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)
