Product features
Android
Plug & Play
Windows
LCD Monitor
Machanical
Metal case
Color
White/Black Optional
Installation
Wall-mounted
Optional size
24/55 inch
High Brightness
Normal/2000nits-3500nits optional
IP Protection
Support industrial grade IP65 waterproof and dustproof grade
Glass
5MM Explosion-proof, glare-proof toughened glass
Temperature Operation
-20°C+60°C

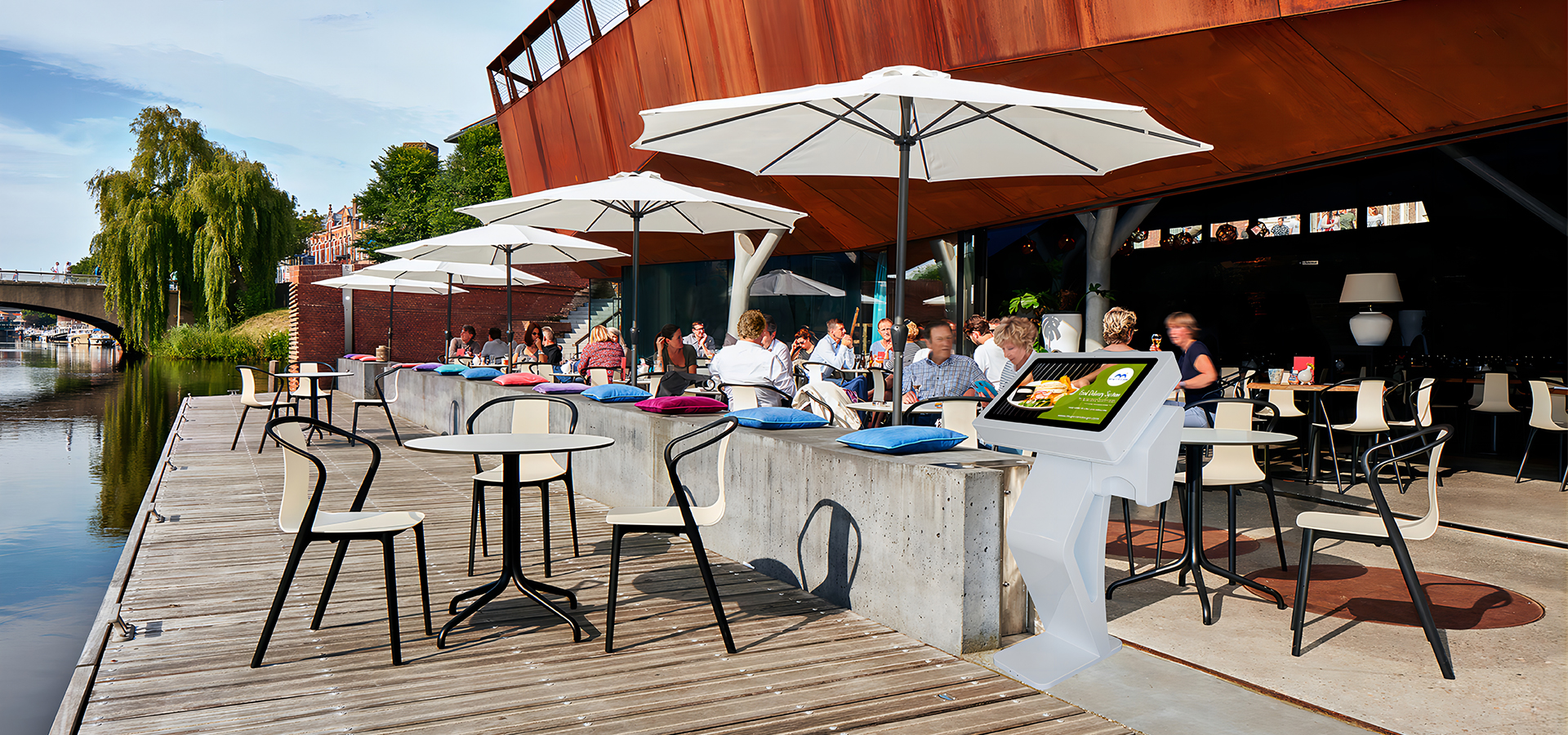

Our outdoor digital signage displays provide unique and impactful solutions for the following outdoor locations:
1. The Shopping Center
2. Building and Roof
3. Auto sales and service center
4. Sports venues
5. Airports, railways and shipping sites
6. Hotels and Restaurants
7. Business and government development
Why Choose Our Outdoor Digital Signage Display?
At Rcstars, we design outdoor digital signage displays to meet all your business needs.
Whether you need a small signage display for your restaurant or a large LED screen for your traffic area,
we are committed to providing the best outdoor signage display solution for your business.
Our company is a professionaloutdoor digital signage display exporter.
We can provide different types of products according to your needs.
If you are interested in our products, please contact us as soon as possible!
Android Network Display
a. Android 7.1/11.0 Operating System Optional
b. RK 3288 / RK 3399 Optional
c. LPDDR4 4GB (MAX), Default 4G
d. 16G/32G/64GB (default 32G)
e. 4G(optional)/WLAN/Wi-Fi Network Connection
f. 802.11 B/G/N/AC Internal Wi-Fi
g. Portrait/Landscape Display Mode
h. 1080P Display Output
i. Remote Management Software (CMS) Optional
Plug And Play Advertising Display
a. Support Picture, Music and Video to 1080P
b. Support DC Input
c. Support SD Card Plug and Play Automatically
d. USB Update Function: Update Documents by USB Drive to SD Card
e. Support connecting with media player box/PC
f. Playlist function: auto play the designated fifile at the specifific date
g. Timer function: 5 groups timers to turn on/offff at the designated time
All-in-one Windows Display
a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®
Processor I3/I5/I7
b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset
c. System memory: 4GB/8GB RAM, 120GB/240GB SSD
d. Input connectors: VGA/USB/RJ45/Audio
e. Operating system: Windows 7/8/10, Linux
f. Preinstall Intel OS service optional
LCD Monitor
a. Professional design for 7-24 hours operation
b. DP/VGA inputs
c. Full HD resolution supported
d. Support connecting with media player box/PC
Full Specification
SPECIFICATIONS
Panel Model
24 inch LCD
Max Resolution
1920x1080 PPI
Aspect Ratio
16:09
Pixel Pitch
0.27675 x 0.27675
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
3500cd/m²
Response Time
25ms
Display Area (mm)
531.36x298.89
Panel Size(mm)
556×323.2×11.5
Screen Weight
2.05 kg
Lamp Type
WLED
POWER
Power
AC 100-240V
SOUND
2×10 W
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0×1, USB 3.0×1
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 100/1000M Ethernet
WiFi
Built-in WiFi 802.11 B/G/N/AC
USB
USB 2.0×1, USB 3.0×1
LAN
100/1000M Ethernet (Network version screen only)
Wi-Fi
802.11 B/G/N/AC (Network version screen only)
SPECIFICATIONS
Panel Model
55inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.63x0.63
Viewing Angle
89/89/89/89
Contrast Ratio
1400:1
Brightness
500cd/m²
Response Time
6ms
Display Area (mm)
1209.6x680.4
Panel Size(mm)
1244.6x720.9x27
Screen Weight
17.5KG
Lamp Type
WLED
POWER
Power
AC100-240V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
