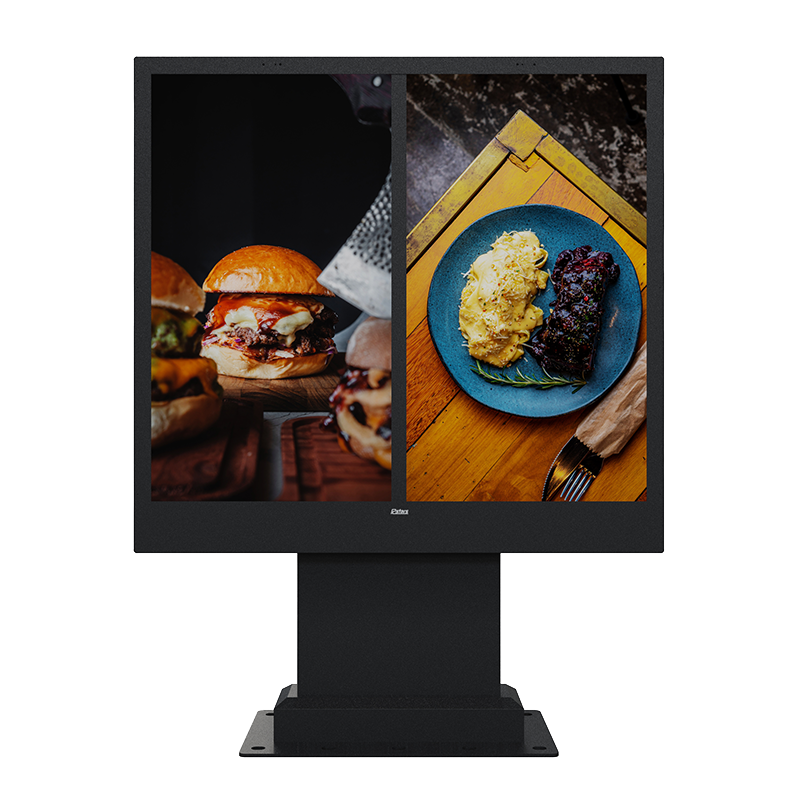

55 inch Outdoors Double-sided Display

RCS-550ODLM

Product features

AndroidAndroid

Plug & PlayPlug & Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal case

Color

White/Black Optional

Installation

Wall-mounted

Optional size

55 inch

High Brightness

Normal/2000nits-3500nits optional

IP Protection

Support industrial grade IP65 waterproof and dustproof grade

Glass

5MM Explosion-proof, glare-proof toughened glass

Temperature Operation

-20°C+60°C

  Outdoor Digital Signage Display Usage


                                            Our outdoor digital signage displays provide unique and impactful solutions for the following outdoor locations:

                                                                                                                                                      1. The Shopping Center

                                                                                                                                                      2. Building and Roof

                                                                                                                                                      3. Auto sales and service center

                                                                                                                                                      4. Sports venues

                                                                                                                                                      5. Airports, railways and shipping sites

                                                                                                                                                      6. Hotels and Restaurants

                                                                                                                                                      7. Business and government development


                Why Choose Our Outdoor Digital Signage Display?


At Rcstars, we design outdoor digital signage displays to meet all your business needs.

Whether you need a small signage display for your restaurant or a large LED screen for your traffic area,

we are committed to providing the best outdoor signage display solution for your business.

 Our company is a professionaloutdoor digital signage display exporter.

We can provide different types of products according to your needs.

If you are interested in our products, please contact us as soon as possible!


Android Network Display

Android Network Display

a. Android 7.1/11.0 Operating System Optional

b. RK 3288 / RK 3399 Optional

c. LPDDR4 4GB (MAX), Default 4G

d. 16G/32G/64GB (default 32G)

e. 4G(optional)/WLAN/Wi-Fi Network Connection

f. 802.11 B/G/N/AC Internal Wi-Fi

g. Portrait/Landscape Display Mode

h. 1080P Display Output

i. Remote Management Software (CMS) Optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

55inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.63x0.63

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

6ms

Display Area (mm)

1209.6x680.4

Panel Size(mm)

1244.6x720.9x27

Screen Weight

17.5KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)
