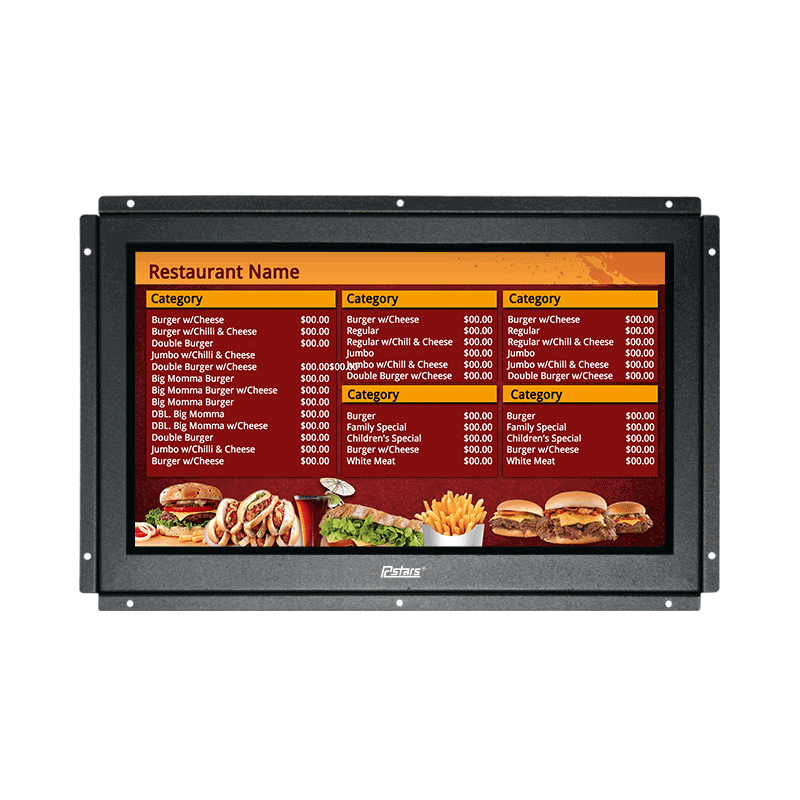

15.6'' Open Frame PCAP Touch Monitor

RCS-150OP

Product features

AndroidAndroid

Plug&PlayPlug&Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal Material

Design

Open frame Design

Screen size

10.1"-24" Optional

High Brightness

Normal/500nits-2000nits optional

Color

Black Optional

Installation

Wall-mounting Bracket Optional

Touch

Capacitive touch/IR touch screen optional

Power

DC 12V

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

15inch TFT LED

Max Resolution

1024x768

Aspect Ratio

4:03

Pixel Pitch

0.297x0.297

Viewing Angle

80/80/80/80

Contrast Ratio

600:1

Brightness

250cd/m²

Response Time

8ms

Display Area (mm)

304.1x228.1

Panel Size(mm)

326.5x253.5x9.6

Screen Weight

950g

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

15.6inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.17925×0.17925

Viewing Angle

85/85/85/85

Contrast Ratio

700:1

Brightness

300cd/m²

Response Time

25ms

Display Area (mm)

344.16x193.59

Panel Size(mm)

359.5x223.8x3.2

Screen Weight

1.2KG

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)
