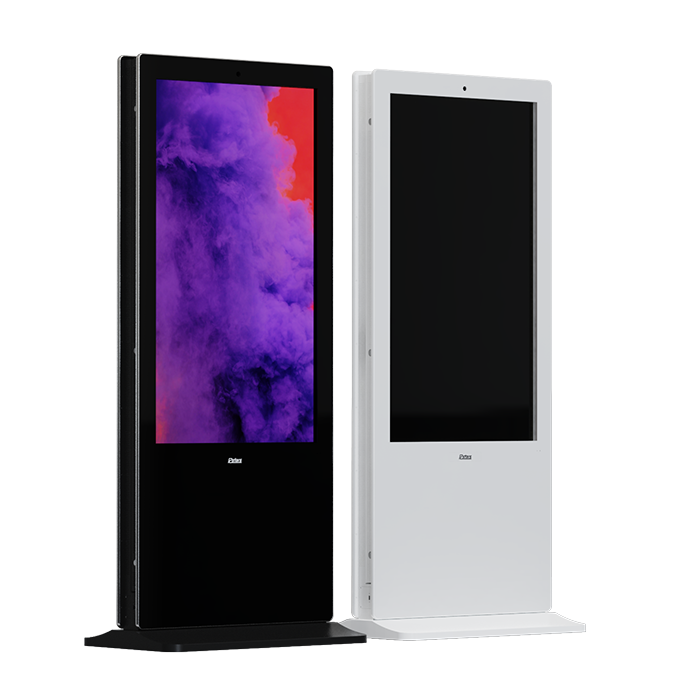

32"-65"Double-Sided IPhone Style FreeStanding Totem

RCS-DL series

Product features

AndroidAndroid

Plug & PlayPlug & Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal case+Ultra-thin Design With 40mm Thickness

High Brightness

Normal/500nits-4000 optional

Glass

Tempered Glass Protection

Color

white/black optional

Touch

Capacitive touch/IR touch screen optional

Optional size

32-65 inch

Power

AC 100-240V

Extended Function

Camera Optional

32"-65"Double-Sided IPhone Style FreeStanding Totem

32"-65"Double-Sided IPhone Style FreeStanding Totem

32"-65"Double-Sided IPhone Style FreeStanding Totem

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

32inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.36375x0.36375

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

6.5ms

Display Area (mm)

698.4x392.85

Panel Size(mm)

727.4x429x227

Screen Weight

4.8KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

43inch TFT LED

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.4903×0.4903

Viewing Angle

89/89/89/89

Contrast Ratio

1200:1

Brightness

500cd/m²

Response Time

26ms

Display Area (mm)

941.184x529.416mm

Panel Size(mm)

973x565.8x29mm

Screen Weight

11Kg

Lamp Type

WLED

POWER

Power

AC 100-240V,50-60 Hz

SOUND

2 x 10W

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

49inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.53025*0.53025

Viewing Angle

89/89/89/89

Contrast Ratio

1000:1

Brightness

500cd/m²

Response Time

12ms

Display Area (mm)

1073.78x604

Panel Size(mm)

1096.2x632.5x29

Screen Weight

18KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

55inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.63x0.63

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

6ms

Display Area (mm)

1209.6x680.4

Panel Size(mm)

1244.6x720.9x27

Screen Weight

17.5KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

65 inch TFT LED

Max Resolution

3840x2160

Aspect Ratio

16:09

Pixel Pitch

0.372x0.372

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

13ms

Display Area (mm)

1428.48x803.52

Panel Size(mm)

1459.2x830x16

Screen Weight

22.7KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





RCS-DL series

RCS-DL series

32"-65" double-sided
IPhone Style FreeStanding Totem

32"-65" optional

FreeStanding Double-sided

Black

White
