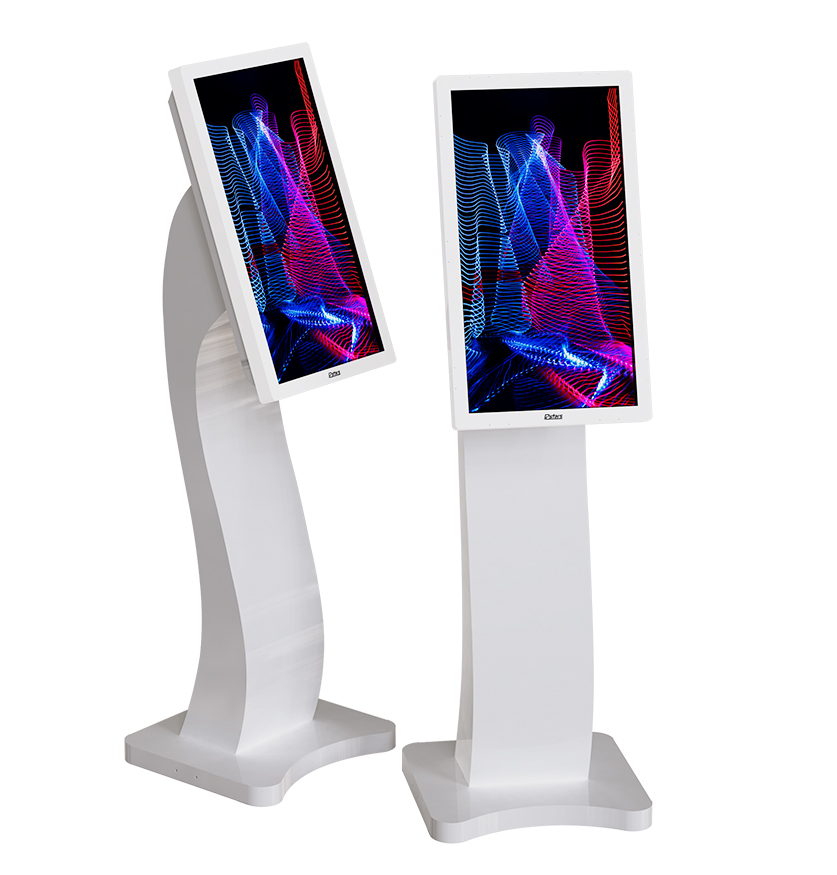

S shape design kiosk RCS-320CS

RCS-320CSTAZ-IR

Product Features

AndroidAndroid

Plug&Play Plug&Play

Windows Windows

LCD MonitorLCD Monitor

Machanical

Metal case

High Brightness

Normal/500nits-4000nits optional

Color

White/Black Optional

Touch

Capacitive touch/IR touch screen optional

Optional size

32 inch

Power

AC 100-240V

Application

Self-service Terminal

Installation

Screen And Stand Could Be Removable

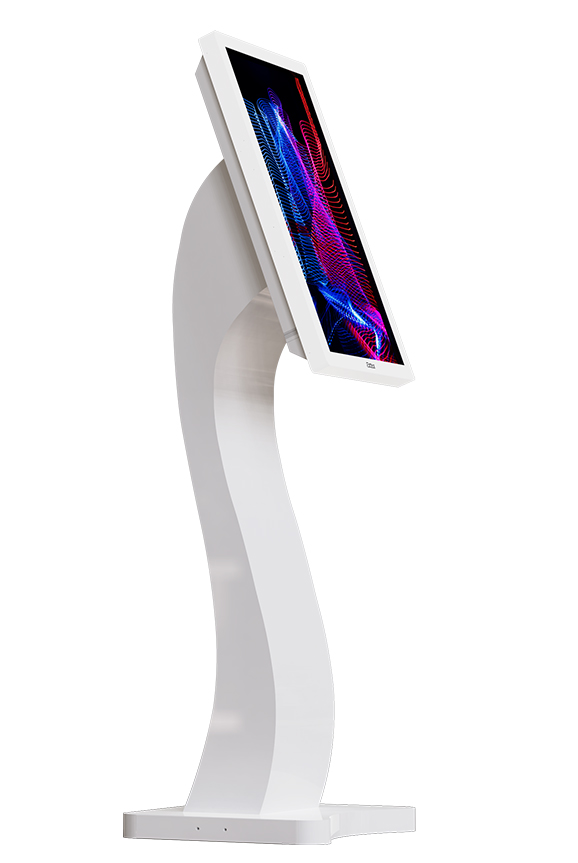

  • S shape design

    S shape design

    1.Set computer, monitor, audio, whiteboard, projector, inquiry machine in one.
    2.Suitable for all walks of life: POS/Hotel/Self-service Terminal/Public Information Display/Hospitality/In-vehicles And Transportation
    3.Dual system compatibility, Android/computer dual is optional.

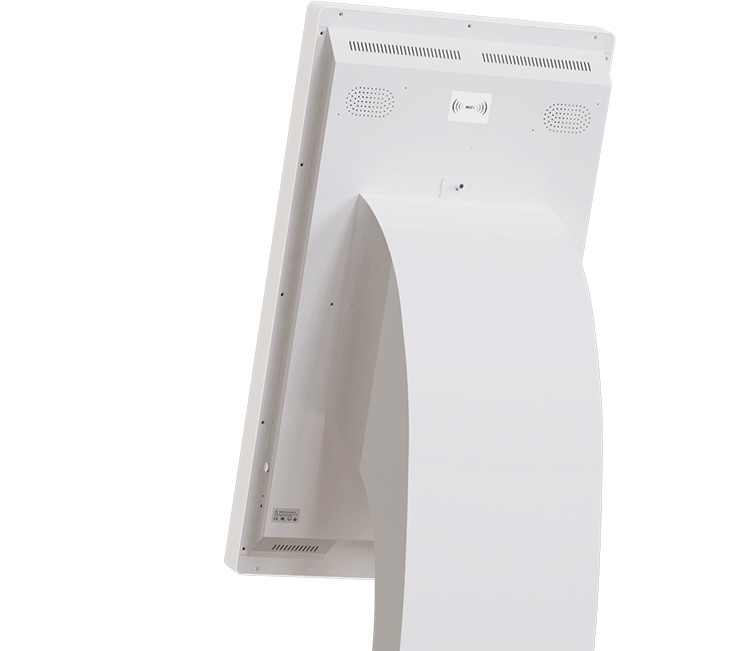

  • Touch query machine

    Touch query machine

    4.Support multi-touch, up to 10 points of accurate touch
    5.Change the content of the program at any time multimedia publishing and management.
    6.Customized function optional: camera/printer/media player

S shape design kiosk RCS-320CS

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

32inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.36375x0.36375

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

6.5ms

Display Area (mm)

698.4x392.85

Panel Size(mm)

727.4x429x227

Screen Weight

4.8KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





RCS-320CS

RCS-320CS

S shape design kiosk

32 inch

Black/White optional

Capacitive touch/IR touch screen optional

Camera optional

Black

White
