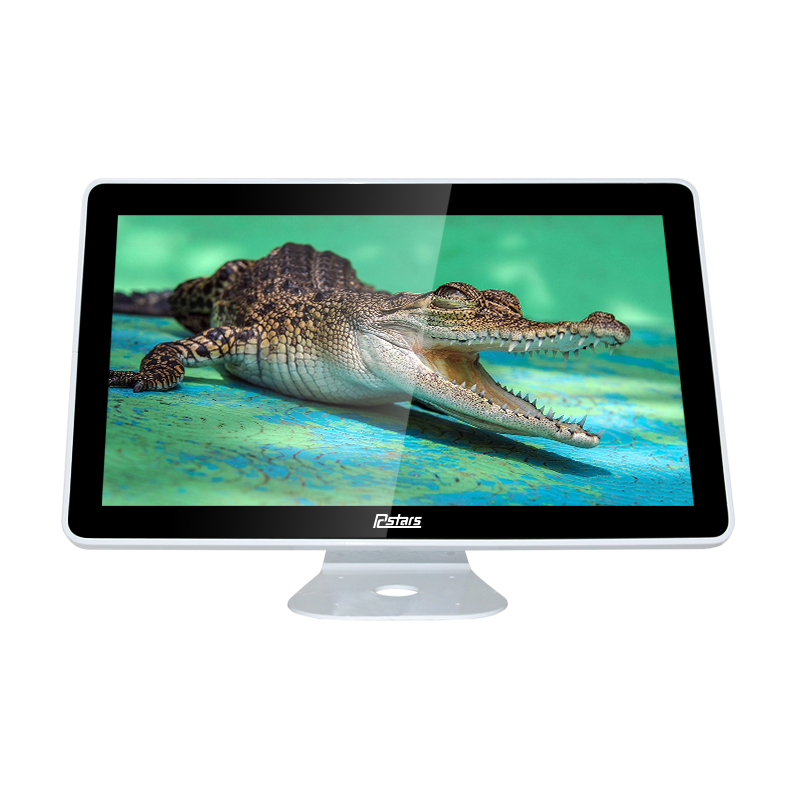

iphone Design Table Display 220JL

RCS-220JLTAZ-PCAP

Product features

AndroidAndroid

Plug & PlayPlug & Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal case+Aluminum Frame With Silver Color

Glass

Tempered Glass Protection

Color

White/Black Optional

Touch

Capacitive (PCAP) Touch Optional

Optional size

10.1 inch/21.5 inch

Application

Indoor

Installation

Desktop advertising machine,Screen And Stand Could Be Removable

Power

DC 12V

Extended Function

Camera Optional

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

21.5inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.24795×0.24795

Viewing Angle

89/89/89/89

Contrast Ratio

1000:1

Brightness

250cd/m²

Response Time

14ms

Display Area (mm)

476.064x267.786

Panel Size(mm)

495.6x292.2x10.7

Screen Weight

2KG

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)
