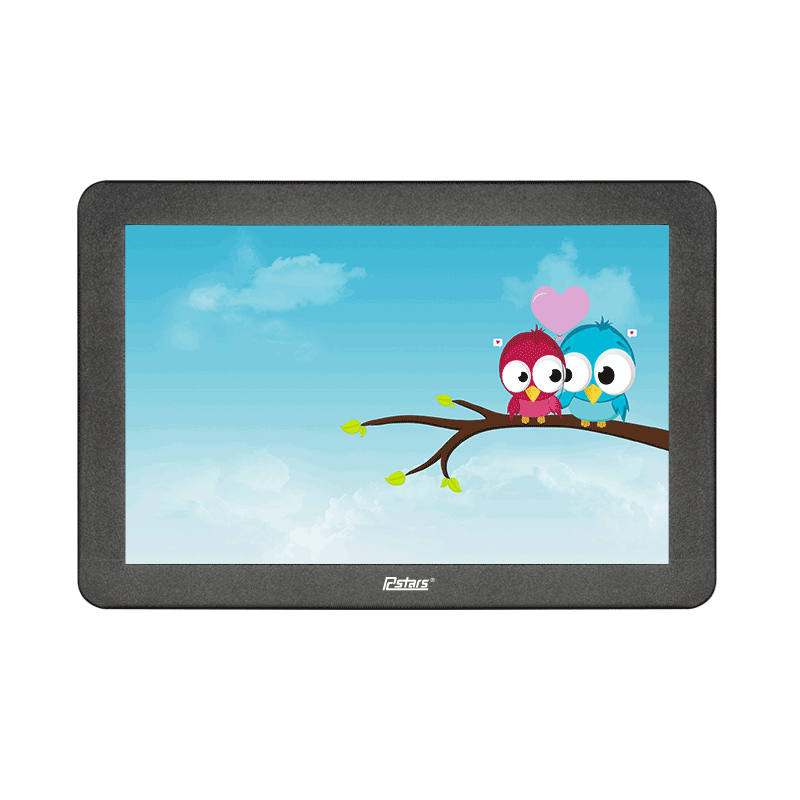

10.1'' Wall Mounted Type Android LCD Display

RCS-101C

Product features

AndroidAndroid

Plug&PlayPlug&Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal Material

Design

Close Frame Design

Screen size

10.1”-24”Optional

High Brightness

Normal/500nits-1000nits optional

Color

Black Optional

Installation

Wall-mounting Bracket Optional

Touch

Capacitive touch/IR touch screen optional

Power

DC 12V

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

10.1inch TFT LED

Max Resolution

1280×800

Aspect Ratio

16:10

Pixel Pitch

0.1659×0.1659

Viewing Angle

85/85/85/85

Contrast Ratio

1300:1

Brightness

350cd/m²

Response Time

25ms

Display Area (mm)

216.96×135.60

Panel Size(mm)

241.86×161.6×5.2

Screen Weight

180g

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

10.4inch TFT LCD

Max Resolution

800x600

Aspect Ratio

4:03

Pixel Pitch

0.264x0.264

Viewing Angle

70/70/50/60

Contrast Ratio

500:1

Brightness

400cd/m²

Response Time

25ms

Display Area (mm)

211.2x158.4

Panel Size(mm)

243x181.6x12.2

Screen Weight

570g

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)
