Close frame wall mounted design RCS-C series

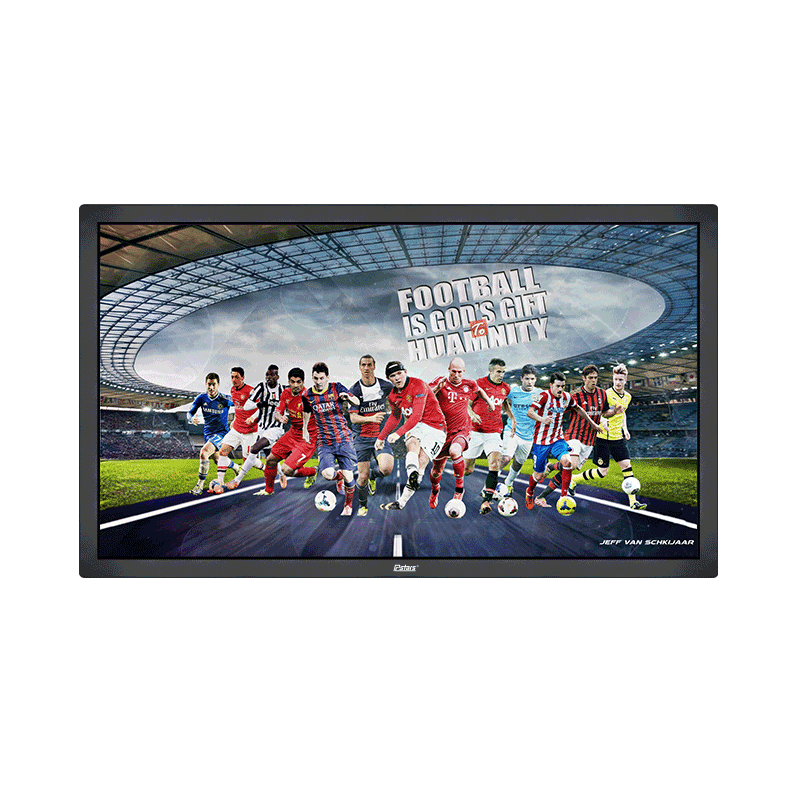

RCS-980C

Product features

AndroidAndroid

Plug&PlayPlug&Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Rear With Metal Material

Design

Close Frame Design

Screen size

55”-98”Optional

Physical resolution

3840(H)*2160(V)

High Brightness

Normal/500nits-4000nits optional

Color

Black Optional

Installation

Wall-mounting Bracket Optional

Extended Function

Camera Optional

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

55inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.63x0.63

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

6ms

Display Area (mm)

1209.6x680.4

Panel Size(mm)

1244.6x720.9x27

Screen Weight

17.5KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

65 inch TFT LED

Max Resolution

3840x2160

Aspect Ratio

16:09

Pixel Pitch

0.372x0.372

Viewing Angle

89/89/89/89

Contrast Ratio

1400:1

Brightness

500cd/m²

Response Time

13ms

Display Area (mm)

1428.48x803.52

Panel Size(mm)

1459.2x830x16

Screen Weight

22.7KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

75inch TFT LCD

Max Resolution

3840x2160

Aspect Ratio

16:09

Pixel Pitch

0.4296x0.4296

Viewing Angle

89/89/89/89

Contrast Ratio

1200:1

Brightness

500cd/m²

Response Time

8ms

Display Area (mm)

1649.66x927.936

Panel Size(mm)

1675.2x953.6x11.9

Screen Weight

36KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

86inch TFT LCD

Max Resolution

3840x2160

Aspect Ratio

16:09

Pixel Pitch

0.4935x0.4935

Viewing Angle

89/89/89/89

Contrast Ratio

1200:1

Brightness

500cd/m²

Response Time

8ms

Display Area (mm)

1895.04x1065.96

Panel Size(mm)

1922.2x1093.2x13.6

Screen Weight

39KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

98inch TFT LCD

Max Resolution

3840x2160

Aspect Ratio

16:09

Pixel Pitch

0.5622x0.5622

Viewing Angle

89/89/89/89

Contrast Ratio

1300:1

Brightness

500cd/m²

Response Time

8ms

Display Area (mm)

2158.85x1214.35

Panel Size(mm)

2187.8x1242.8x68.6

Screen Weight

59KG

Lamp Type

WLED

POWER

Power

AC100-240V

SOUND

10Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)
